CARRIER | NSB Sensors (non-communicating)
Please contact our Sales Team for a price quote for products or installation.
Duct Averaging Temperature Sensor (NSB-10K-2-A)
OVERVIEW
The Averaging Sensor is for duct mounting and temperature measurement of stratified air across the duct to give the average temperature along the length of the sensor. The flexible probe is made of aluminum and made in different lengths for a custom duct fit. Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated.
Duct Mounted Temperature Sensor (NSK-10K-2-D)
OVERVIEW
The duct mounted temperature sensor is a passive resistive sensor. It comes in a variety of probe lengths and optional mounting enclosures. The sensors come with standard accuracy.

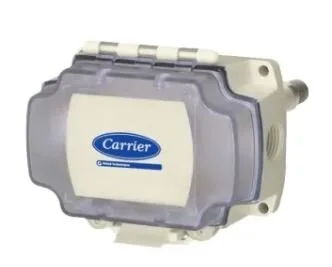

Duct & Outside Air Humidity/Temperature Sensors (NSB-10K-2-H200)
OVERVIEW
The H200 is a 2% accurate relative humidity sensor that includes a thermistor temperature sensor. The sensor can be ordered for duct or outside air applications. The transmitter can be wired for either a 0 to 5 VDC output or a loop powered 4 to 20 mA output.

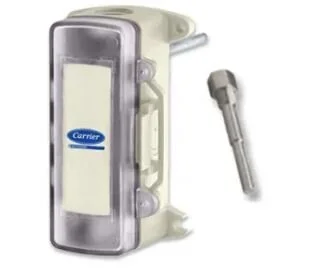

Immersion Temperature Sensors (NSB-10K-2-1)
OVERVIEW
The Immersion Temperature Sensor is made for thermowell mounting and temperature measurement in water pipes, water tanks or cooling tower sump applications. The rigid probe is made of Stainless Steel and made in different lengths for a custom thermowell fit. Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated.
Remote Sensors & Probes (NSB-10K-2-RPP)
OVERVIEW
The Remote Probe with Plenum-Rated Cable (NSB-10K-2-RPP-*) is a small stainless steel temperature sensor used for single point temperature measurement with PVC plenum rated cable. It is ideal for bracket mounting for chamber, duct, thermowell or L-bracket applications.
The Remote Probe with FEP-Jacketed Cable (NSB-10K-2-RPFEP-*) is a small stainless steel temperature sensor used for single point temperature measurement with FEP plenum cable. It is ideal for bracket mounting in harsh environments for chamber, duct, thermowell or L-bracket applications.
The Remote Probe with FEP-Jacketed Cable (NSB-10K-2-RPFEP2-*) for submersion is a small stainless steel temperature sensor used for sin gle point temperature measurement with submersion FEP plenum cable. It is ideal for bracket mounting in wet or water submersion environments for chamber, duct, immersion or L-bracket applications.

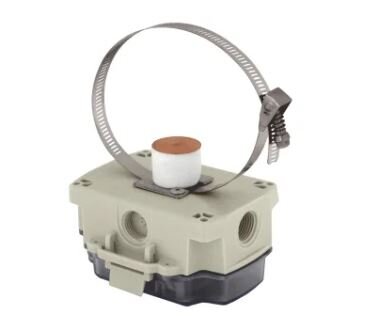

Clamp-on & Strap Temperature Sensors (NSB-10K-2-STP)
OVERVIEW
Clamp-on Sensors are made for direct pipe mounting and temperature measurement of water pipe applications. These sensors are for mounting before any insulation is on the pipe.
Strap Sensors are spring-loaded units that are for mounting to pipes with up to 2” of insulation using a unique spring sensor extension.
Enclosure mounting styles come in plastic or metal for both NEMA 1 and NEMA 4 applications and are all plenum rated.

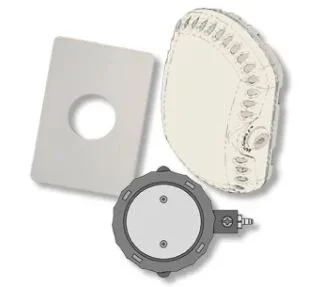

Sensor Accessories (NSB-ACC)
OVERVIEW
Wall Adapter Plate (NSB-ADP-525-7-OFW (7.5" x 5.25") & NSB-ADP-37-55-OFW (5.5" x 3.75") The Wall Adapter Plate is designed to cover wall imperfections when installing wall sensors or thermostats. The adapter plate is available in two sizes. The adapter plate can be painted or wall papered. PRODUCT INSTALLATION
Duct Static Pressure Probe Assembly (NSB-ZPS-ACC07) The duct static pressure probe assembly consists of: a static pressure probe, a 6 inch piece of silicon rubber tubing, a 12 inch piece of silicon rubber tubing, two self-drilling sheet metal screws and a pressure spike reducer. PRODUCT INSTALLATION
Thermostat Guard (NSB-BG2) The Thermostat Guard prevents tampering, physical damage, and unauthorized adjustment of thermostats. It is made of thick, durable polycarbonate and features exceptional airflow, key lock protection, horizontal or vertical mounting, and easy installation with hardware included. PRODUCT INSTALLATION
Low Profile Pressure Pickup Port (NSB-ZPS-ACC20) The Low Profile Pressure Pickup Port is ideal for locations where aesthetics are as important as the pressure measurement. The inconspicuous sensor mounts easily by pushing through a 7/16” hole and secured with an adhesive ring. The only visible portion is a flush 7/8” dot on the wall. The built-in surge damper provides five-micron filtering and smooths out rapid variations in air pressure for a more stable reading. TERMINATION & TROUBLESHOOTING GUIDE
EZ Voltage Converter (NSB-VC350A-EZ-ADJ) The Voltage Converter is a cost-effective way of converting 24 VAC or VDC to 5 to 24 VDC for use on peripheral devices that require DC voltage. The converter is available with a 350 mA output. The Voltage Converter’s EZ mounting system allows for 2.75” snaptrack, DIN rail, or surface mounting. PRODUCT INSTALLATION
Outdoor Air Static Pressure Pickup Port (NSB-ZPS-ACC10) PRODUCT INSTALLATION
Air Quality and Leak Detection Sensors (NSB-AQ-LD)
OVERVIEW
Refrigerant Leak Detector (NSB-RLD) The Refrigerant Leak Detector Sensor measures the amount of R404a, R410A and/or R22 present. This sensor measures leaks and spills; it is not intended for critical ppm measurements. Voltage trip levels for R22, R404A and R410A leaks and spills are shown in the table on the next page. The sensor is temperature compensated for an accurate and reliable measurement. PRODUCT INSTALLATION
Water Leak Detector (NSB-LDT4-PS-BB with internal sensor probe & NSB-LDT4-RR10-BB with water rope sensor) The Water Leak Detector is designed to sense the presence of water and alert a central monitoring system of the potentially destructive situation. Upon water detection, an alarm relay changes state, and a local red LED illuminates. The transmitter can be set for latching alarm or non-latching alarm with normally energized or de-energized operation. PRODUCT INSTALLATION
CO2 Duct Sensor (NSB-ACD05-D-BB single beam & NSB-DCD05-D-BB dual channel 24/7) The CO2 Duct Sensor is an accurate and reliable way of incorporating demand controlled ventilation. It measures CO2 in ranges of 0 to 2000, 0 to 5000, 0 to 10000, and 0 to 50000 ppm with a field-selectable output of 0 to 5 or 0 to 10 VDC. PRODUCT INSTALLATION
Carbon Monoxide Transmitter/Sensor (NSB-CO-V-BB) The Carbon Monoxide Transmitter/Sensor offers enhanced electrochemical sensing with outstanding accuracy at low concentrations. The Rough Service unit features a ventilated enclosure and is ideal for parking ramps, equipment rooms and warehouses. PRODUCT INSTALLATION

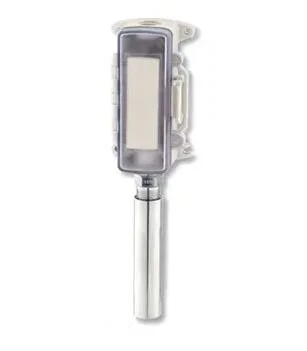

Miscellaneous Temperature Sensors (NSB-MISC)
OVERVIEW
The Thermobuffer Temperature Sensor (NSB-10K-2-TB-M304-*) is for temperature sensing in walk-in freezers or refrigerators. The buffers are made in different lengths and are made to be filled with food grade glycol to slow down the temperature response to more closely mimic the contents of the freezer or refrigerator. The buffers are stainless steel, and the sensors are available in two mounting styles, a NEMA 4 plastic enclosure for wall mounting or a hanging bracket. PRODUCT INSTALLATION
The Outside Air Temperature Sensor (NSB-10K-2-O-BB2) is a thermistor sensor for outside air mounting. The probe is made to protect the sensor from rain, sleet, snow or bird droppings. The enclosure is NEMA 4 and UV rated.
The Low Profile Button Wall Sensor (NSB-10K-2-2-LPW) is ideal for locations where aesthetics are as important as the temperature measurement. This inconspicuous sensor mounts easily by pushing through a 1/2” hole and secured with a peel off tape strip. The only visible portion is a flush 7/8” dot on the wall. PRODUCT INSTALLATION
Pressure Sensors (NSB-ZPS-T)
OVERVIEW
EZ Pressure Sensor (NSB-ZPS-LR-EZ-ST-* low range & NSB-ZPS-SR-EZ-ST-* standard range) The EZ Low Pressure Sensor is a true differential pressure transmitter that provides ±1 inches WC (±250 Pacals) in 10 field selectable ranges (see specifications). The EZ Standard Pressure Sensor provides ±5 inches W.C. (±1,250 Pacals) in 10 field selectable ranges (see specifications). The EZ enclosure is designed for DIN rail, Snaptrack or surface mounting. Three output ranges of 0 to 5 VDC, 0 to 10 VDC and 4 to 20 mA are also field selectable for all pressure ranges. The wiring terminal block is depluggable. Pressure units are available in of Inches of Water Column or Pascals. PRODUCT INSTALLATION
Zone Pressure Touch Sensor (NSB-ZPT-SR-BB-ST-D standard range & NSB-ZPT-LR-BB-ST-D low range) The Zone Pressure Touch (ZPT) Sensor is an accurate, rugged and economical solution for measuring and reporting duct/ building static pressure, room-to-room differential pressure or air velocities/volumes. The heart of the unit is a micro-machined silicon pressure sensor with excellent accuracy, repeatability, and stability. The touch interface allows for quick and easy menu driven setup of all parameters including auto zero, pressure ranges, output ranges, W.C. or Pascal operation, and display format of pressure, percent output or “On”. You can also use the interface to create custom ranges by adjusting the upper and lower pressure endpoints.
ZPS Pressure Sensor (NSB-ZPS-SR-BB-ST-D-IN standard range & NSB-ZPS-LR-BB-ST-D-IN low range)
Field Adjustable ZPS Pressure Switch (NSB-ZPS-SW3)
