CARRIER | Smart Valves
Please contact our Sales Team for a price quote for products or installation.

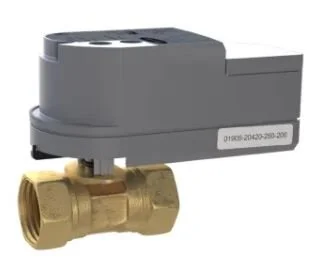

i-Vu Pressure Dependent Smart Valve (SV-PD)
OVERVIEW
Carrier’s i-Vu® smart valves are designed for maximum efficiency in tight spaces. Equipped with a 2-way or 3-way space saving ball valve, the installation height is 4.33 inches (110 mm). The i-Vu smart valves are operated by a rotary actuator. This actuator is controlled by an Act Net communications signal from the controller which moves the ball of the valve to the desired position

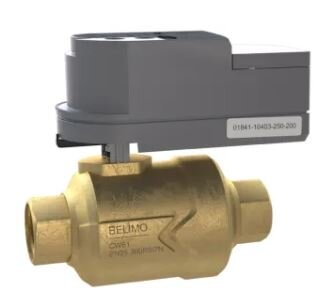

i-Vu Pressure Independent Smart Valve (SV-PI)
OVERVIEW
Carrier’s i-Vu® smart valves are designed for maximum efficiency in tight spaces. They combine a differential pressure regulator with a 2-way control valve to supply a specific flow for each degree of ball opening, regardless of system pressure fluctuations. As such, the valves perform the function of a balancing valve and control valve in one unit. The i-Vu smart valves are operated by a rotary actuator. This actuator is controlled by an Act Net communications signal from the controller which moves the ball of the valve to the desired position.
