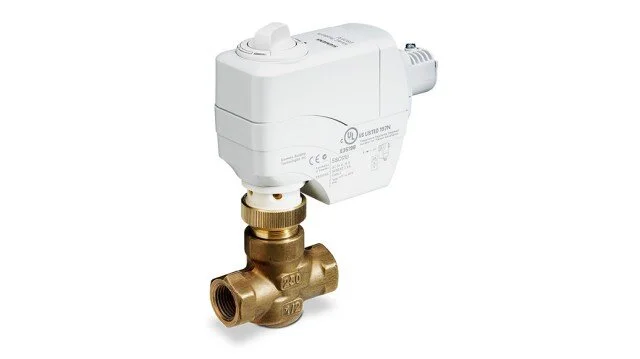

Powermite | Globe Valves

OVERVIEW

Range from ½- to 1-inch sizes with Cv from 0.4 to 10. These valves can be used to control hot and chilled water with up to 50% glycol and low-pressure steam <15 psi over a temperature range of 35°F to 250°F.

FEATURES

• 2-way normally open and normally closed

• 3-way mixing

• Brass or stainless steel trim

• Available with a variety of NPT threaded end connection options

• ANSI Class IV leakage - less than 0.01% of Cv at rated close-off pressure

• Modified equal percentage flow characteristic

• Pneumatic and electro-motoric fail-safe actuators return valves to a fail-safe position in the event of power loss

• Choice of control signals: modulating 0-10Vdc/4-20mA or 24Vac floating 3-position actuators

BENEFITS

• Easy pneumatic to electronic interchange reduces installation time

• 360° actuator swivel rotation is able to fit in tight spaces where other valves will not

APPLICATIONS

• Baseboard heating

• Fan coil units

• Terminal boxes

• Unit ventilators

• VAV reheat coils

Flowrite | Globe Valves

OVERVIEW

Range from ½- to 6-inch sizes with Cv from 1 to 400. These valves control hot and chilled water with up to 50% water-glycol and saturated steam up to 100 psi and over a temperature range of 35°F to 337°F.

FEATURES

• 2-way normally open and normally closed

• 3-way mixing

• ANSI 250 pressure class threaded valves; ANSI 125 and 250 pressure class flanged valves

• Equal percentage or linear flow characteristic

• Bronze or stainless steel trim

• High pressure close-off flanged 2-way valves have 200 psi close-off is highest in the industry

• ANSI Class IV leakage 0.01% of Cv at rated close-off pressures for all valves

• High temperature packing for high pressure steam ≤100 psi and media temperature up to 337° F

BENEFITS

• Easy pneumatic to electronic interchange

• Service flange allows for easy access to 3-way valve components without removing valve from line

• Higher close-off pressure meets specifications for more applications

• Serviceable with replaceable packing kits and rebuild kits to prolong the life of installed valves

APPLICATIONS

• Air handling units

• Central plants

• Convectors

• Reheat coils

• Unit ventilators

656/658 | Globe Valves

OVERVIEW

These 2-way and 3-way valves range from ½- to 1¼-inch sizes with Cv from 0.9 to 16. Used to control hot or chilled water with up to 50% glycol and low-pressure steam <15 psi with a maximum temperature of 250°F.

FEATURES

• 2-way, 3-way mixing, changeover and sequence valves with ½-inch SAE flare connections

• 2-way normally open angle female by union male valves in ½- to 1¼-inch

• ANSI 250 pressure class

• Modified equal percentage flow characteristic

• Available with a variety of pneumatic actuator spring ranges

BENEFITS

• Angled connections with union fittings or SAE flared end connections, which make fan coil cabinet and tubing installations easy

• Fully serviceable for long installed life

• Soft plug design provides an exceptional close-off due to the low force positive sealing

• The 658 Series large diameter pneumatic diaphragm provides precise control of steam and water/glycol solutions

APPLICATIONS

• Baseboard/radiant heat

• Convectors

• Fan coil units

• Induction units

• Reheat coils

• Unit ventilators

Free Factory Assembly & Valve Tagging

Valves and valve actuators are assembled and tagged for direct delivery to any jobsite, free of charge. All you do is specify each valve’s location when placing your initial order and we will tag them before shipping to save you installation time and expense. Please contact CCG for details.
